box sample making machine GSB85
box sample making machine » GSB85

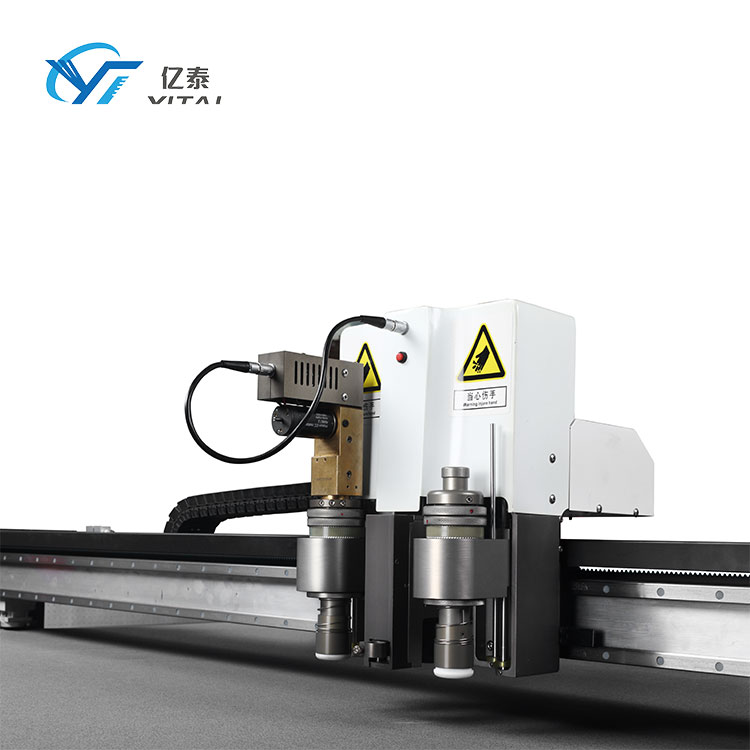

Pictures available of box sample making machine:

GSB85

box sample making machine

Enquiry Now

box sample making machine Details

GSB85 series high speed flatbed digital cutter specially equips the vibrating knife, creasing wheel, drag knife, v cut knife and pen, it can cut many kind of materials, such as corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet and also the ads and display industry’s materials PVC and so on. MEC85 is more flexible and broaden the cutting application. It can be used to cutting, sampling, and small production for the packing, printing, ads and display industries.
main features:
New steel frame design, more stable of machinery
TWO independent module design, broaden the application
Exchangeable tools, better expansion
New honeycomb bed and vacuum area design, stronger suction
Max cutting thickness up to 50mm
Auto tool height make the tool settings more convenience



Interface
Ethernet port
Cutting material
foam, EVA, PVC, corrugated board, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl, leather, fabrics, paper,acrylic, etc
Application
Used in Corrugated, packaging, printing, and the relative lines, which need the oscillation and non-oscillation cutting knives,creasing wheels. etc
Vacuum pump
7.5KW
Tool configuration
Multiple cutting knives
Safety device
 Using infrared sensors, responsive, safe and reliable.
translational velocity
800-1300mm/s
Cutting speed
Within1200mm/s(according to different cutting materials)
Cutting thickness
Oscillating knife  ≤50mm(according to different cutting materials)
 Repeated accuracy
≤0.1mm
Capacity
2GB
Instruction system
DXF, HP-GL ,AI ,compatible format
Voltage
220V, 50-60HZ
